Tube
PEEK Tube
- Features
- Heat resistance
- Friction resistance
- Chemical resistance
- Hydrolysis resistance
- Impact resistance
- Flame resistance
Description

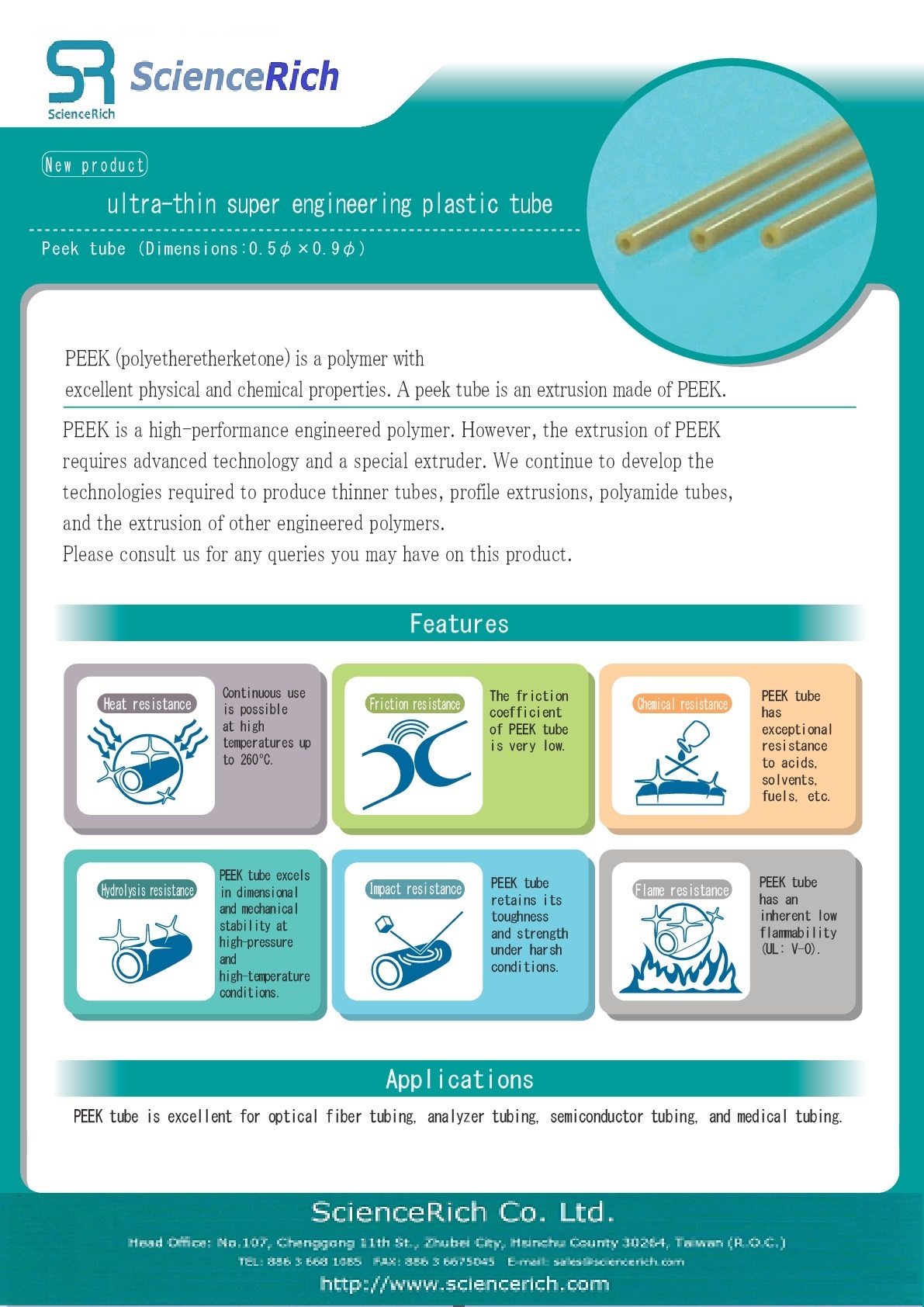

It's the ultra-thin super engineering plastic tube. Peek(polyetheretherketone) is a polymer with excellent physical and chemical properties. A peek tube is an extrusion made of PEEK. PEEK is a high-performance engineered polymer. However, the extrusion of PEEK requires advanced technology and a special extruder. We continue to develop the technologies required to produce thinner tubes, profile extrusions, polyamide tubes, and the extrusion of other engineered polymers.Specifications
| Color | Composition | Specification | MOQ |
| Nature,black | PEEK(polyetheretherketone) | MAX. OD: 3Ø 0.2Ø x 0.4Ø ~ 0.9Ø x 1.5Ø (OD tolerance：±0.04~±0.06 ) |
Standard: 500M Customized: 1000M |
Features
| Heat resistance | Continuous use is possible at high temperatures up to 260℃ |
| Friction resistance | The fricition coefficient of PEEK tube is very low |
| Chemical resistance | PEEK tube has exceptional resistance to acids, solvents, fuels...etc |
| Hydrolysis resistance | PEEK tube excels in dimensional and mechanical stability at high-pressure and high-temperature conditons |
| impact resistance | PEEK tube retains its toughness and strength under harsh conditions |
| Flame resistance | PEEK tube has an inherent low flammability(UL: V-0) |
Applications
· Car, electronics, optical fiber and analyzer tubing· Physical and chemistry, semiconductor, medical tubing
